SPECIFICATIONS
Brand Name: BDXRc
Choice: yes
For Vehicle Type: Cars
Four-wheel Drive Attributes: Assemblage
Hign-concerned Chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Metal
Model Number: Portal Axle
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: AXLE
Recommend Age: 14+y
Remote Control Peripherals/Devices: Servos
Size: for 1/10 RC Crawler
Technical parameters: value 2
Tool Supplies: Assembled class
Upgrade Parts/Accessories: Hydraulic Transmission Box
Use: Vehicles & Remote Control Toys
Wheelbase: Screws
Features
• CNC Machined
• Anodized

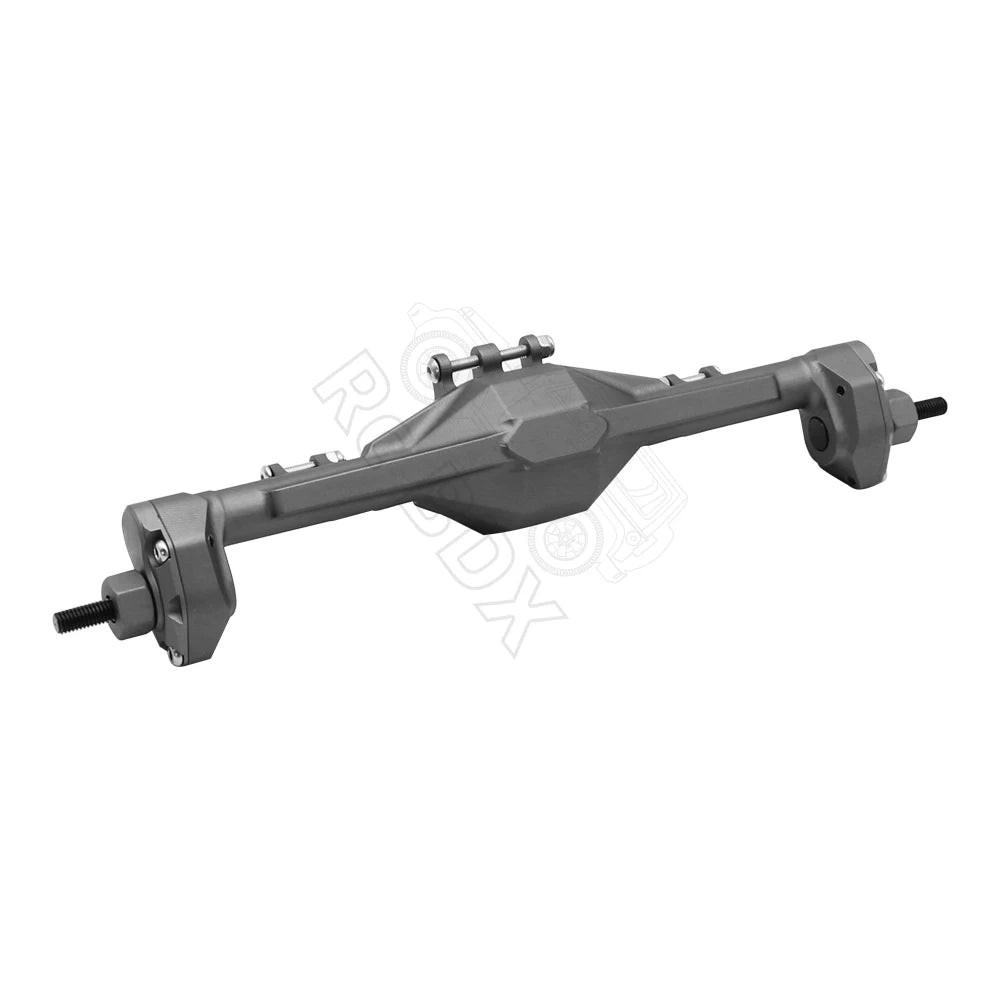

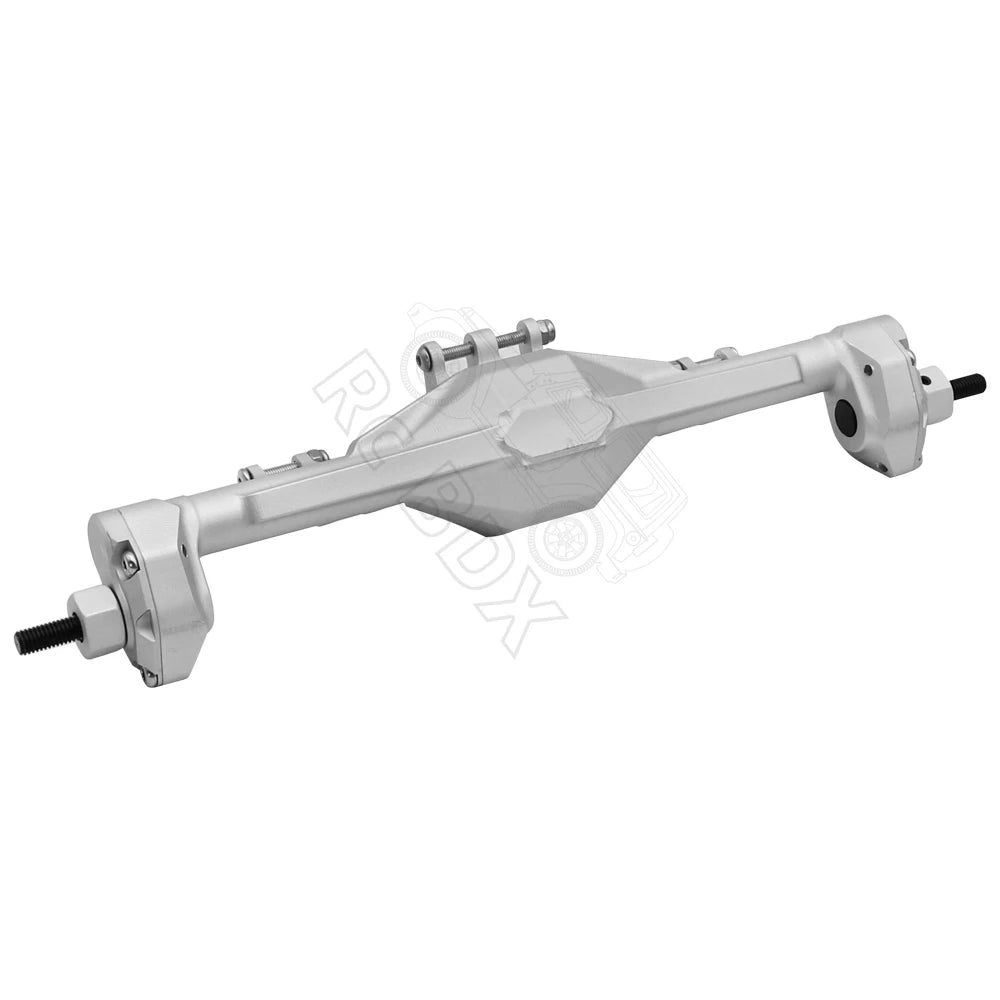

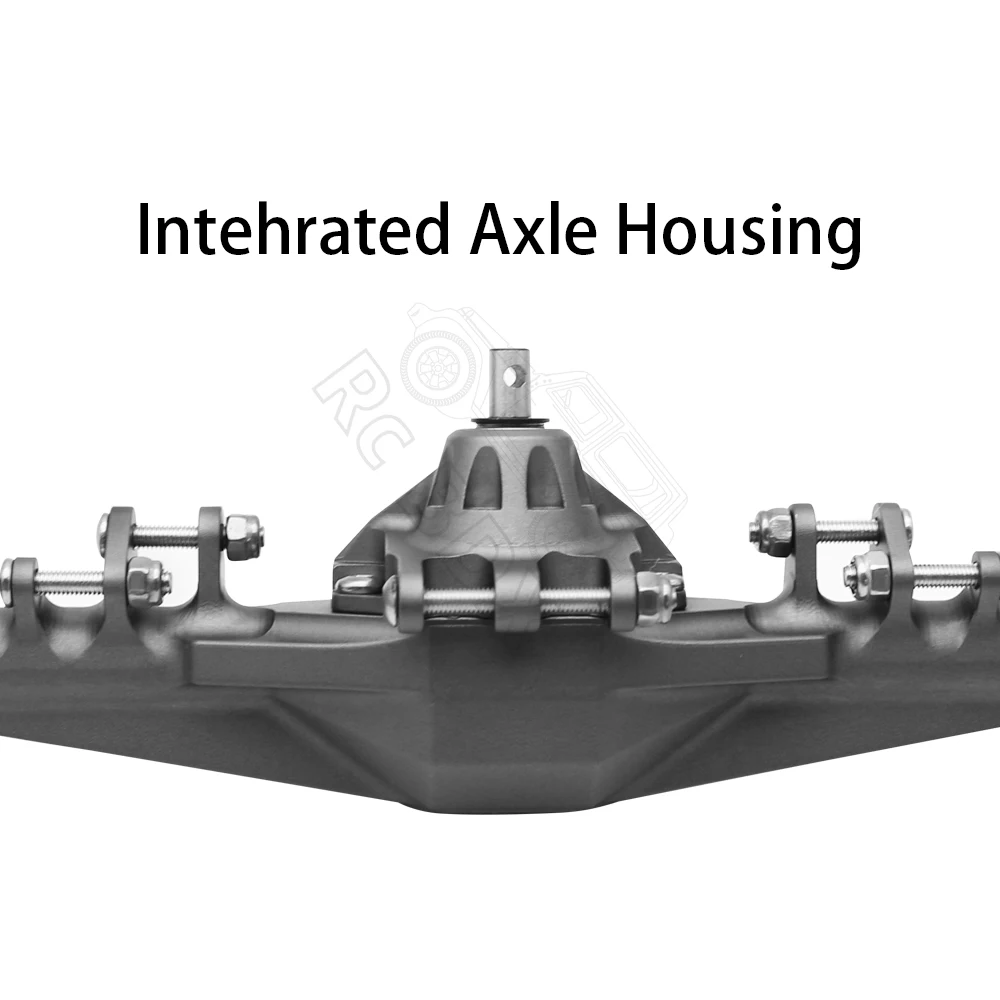

• Integrated axle housing design for durable

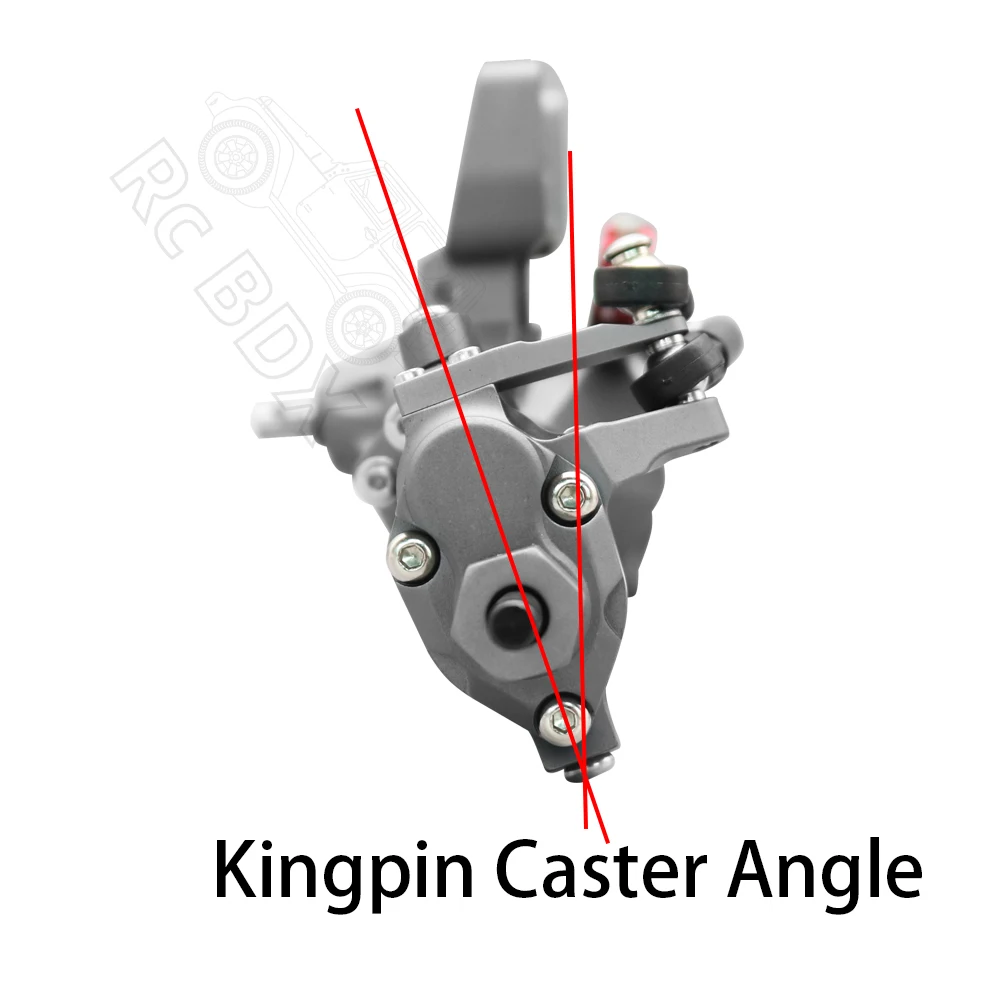

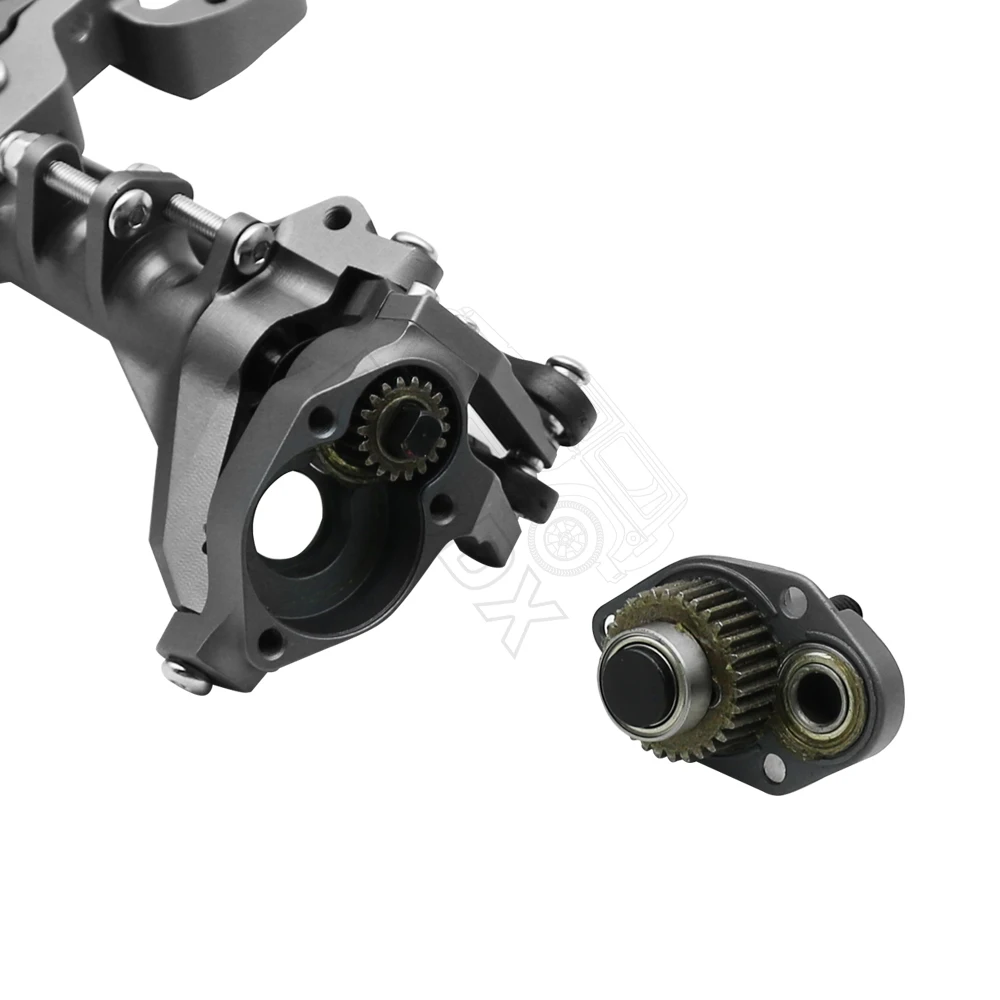

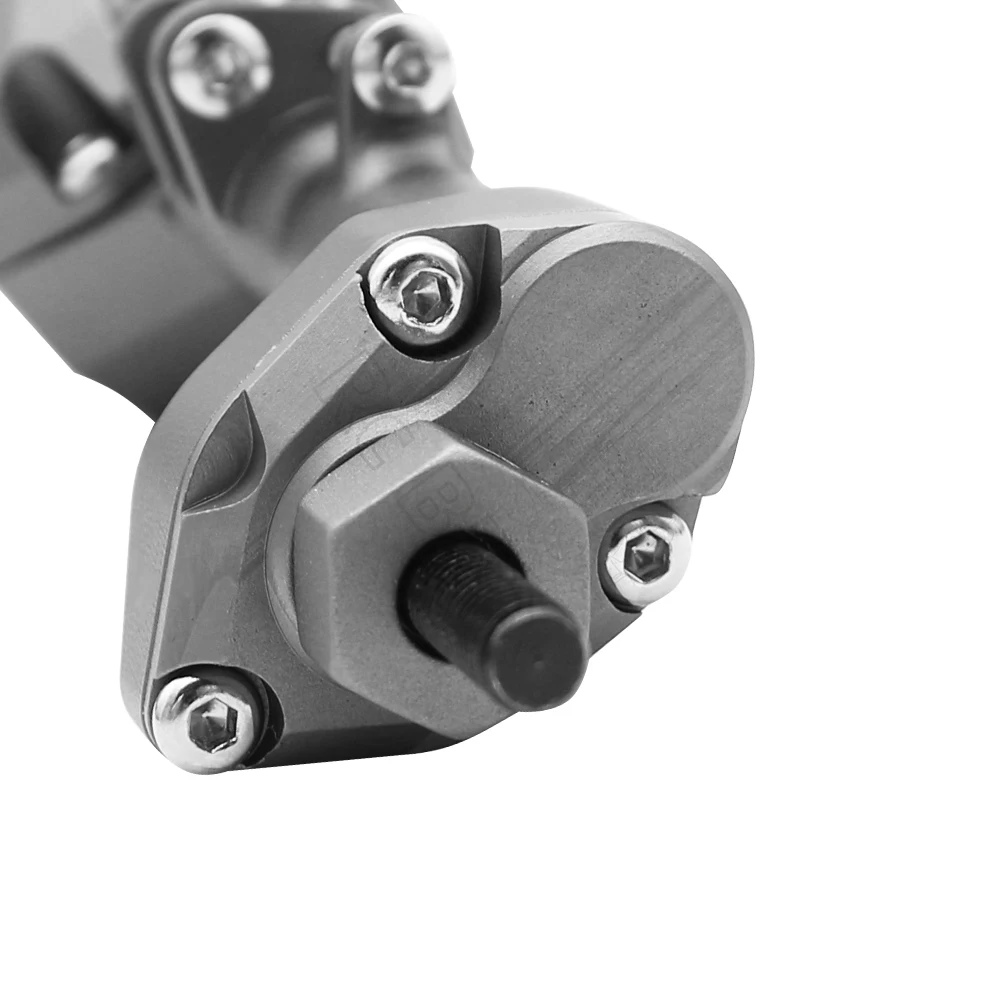

• Portal box built into the knuckle with bolt on high steer arm for double shear mounting
• Offset C-hubs is machined into the housing for strength and durability

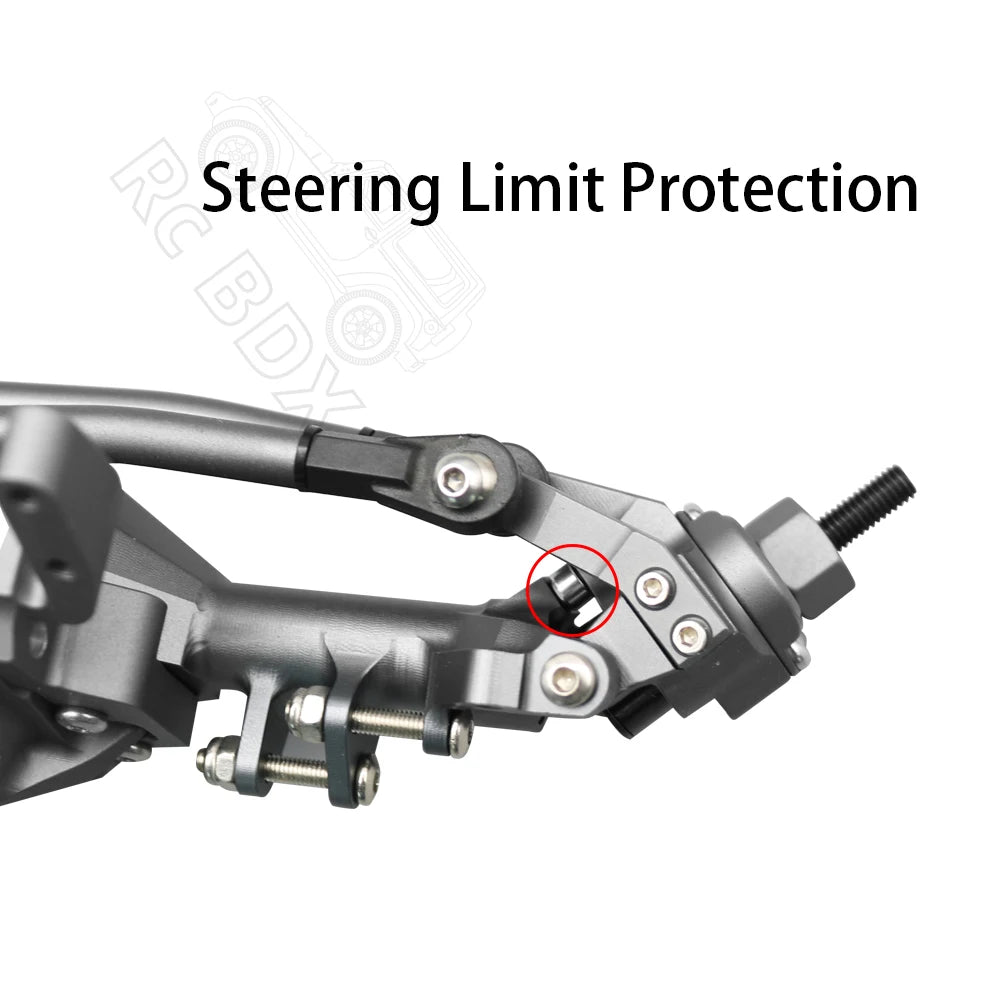

• Adjustable steering stop integrated into knuckle
• Complete fast eddy bearings kit

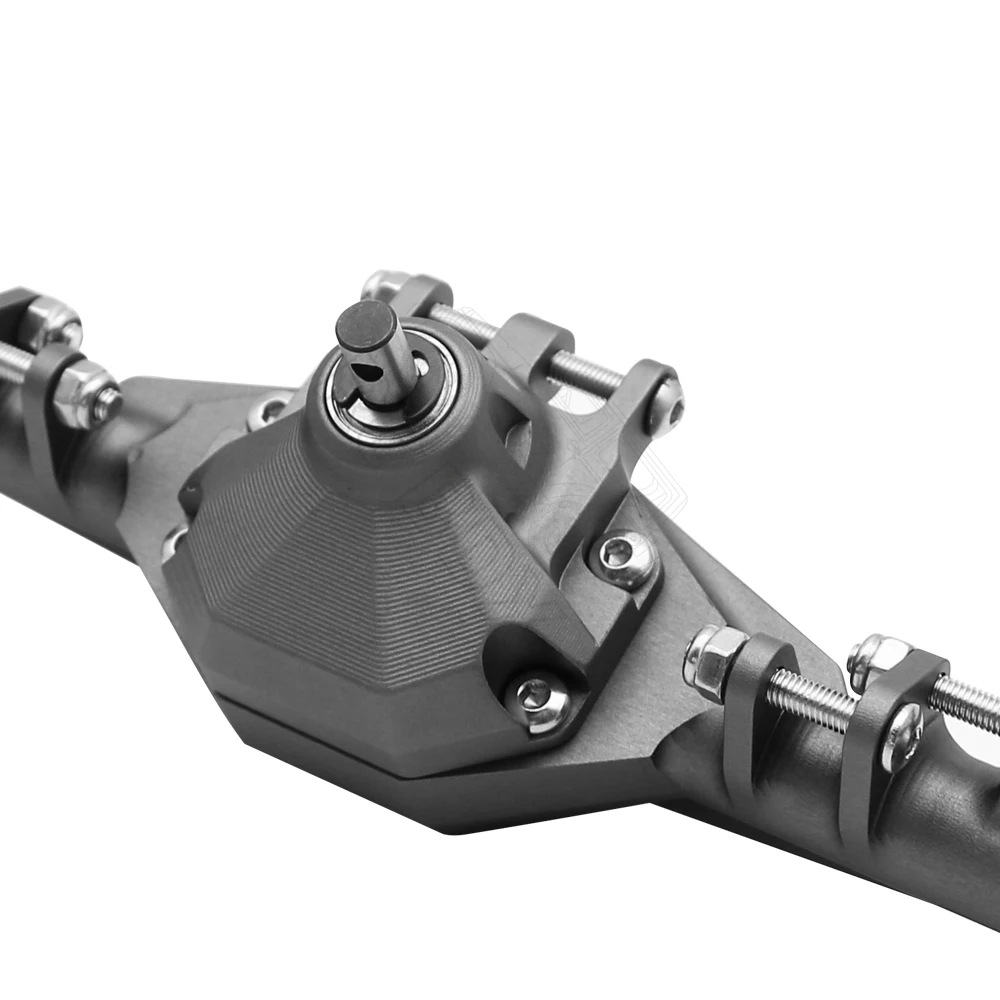

• Double shear shock mounts
• Integrated panhard mount
• Increased upper link clearance for more suspension up travel ability
• 13mm increase in ground clearance

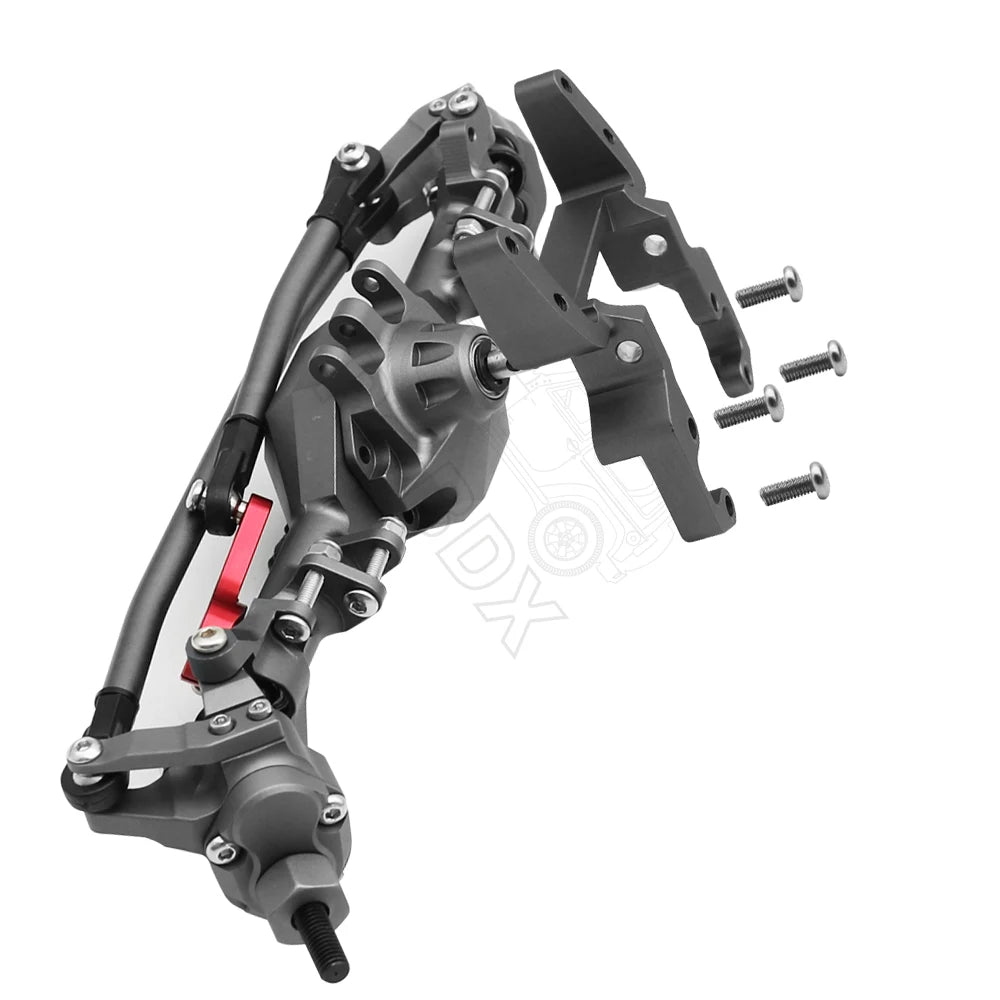

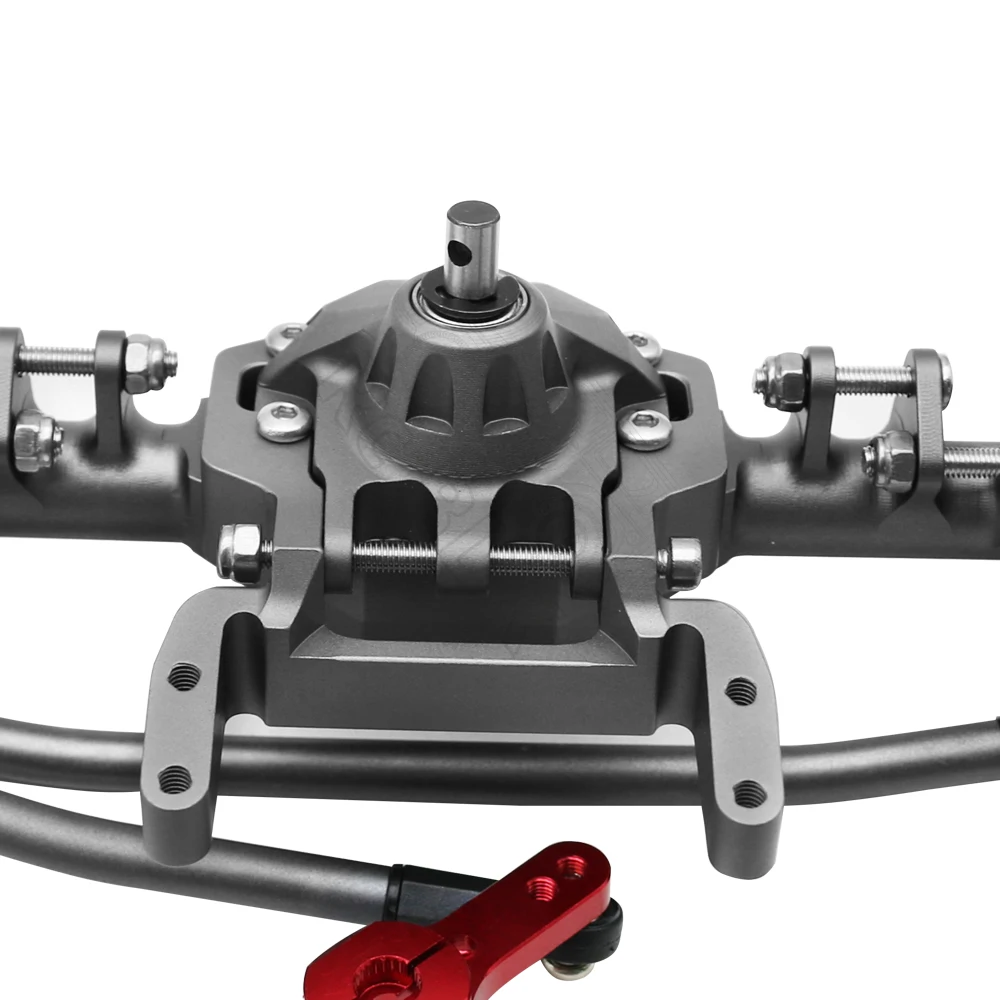

• Comes with servo mount and steering links

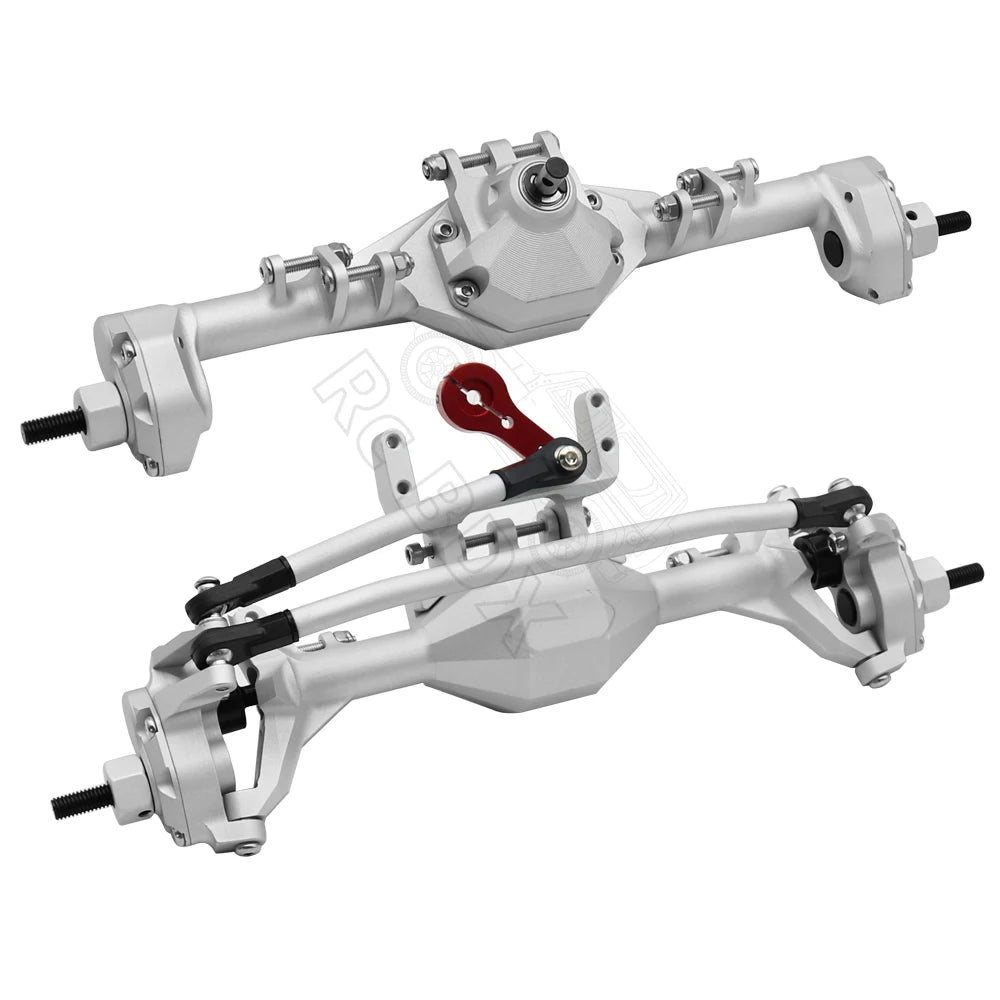

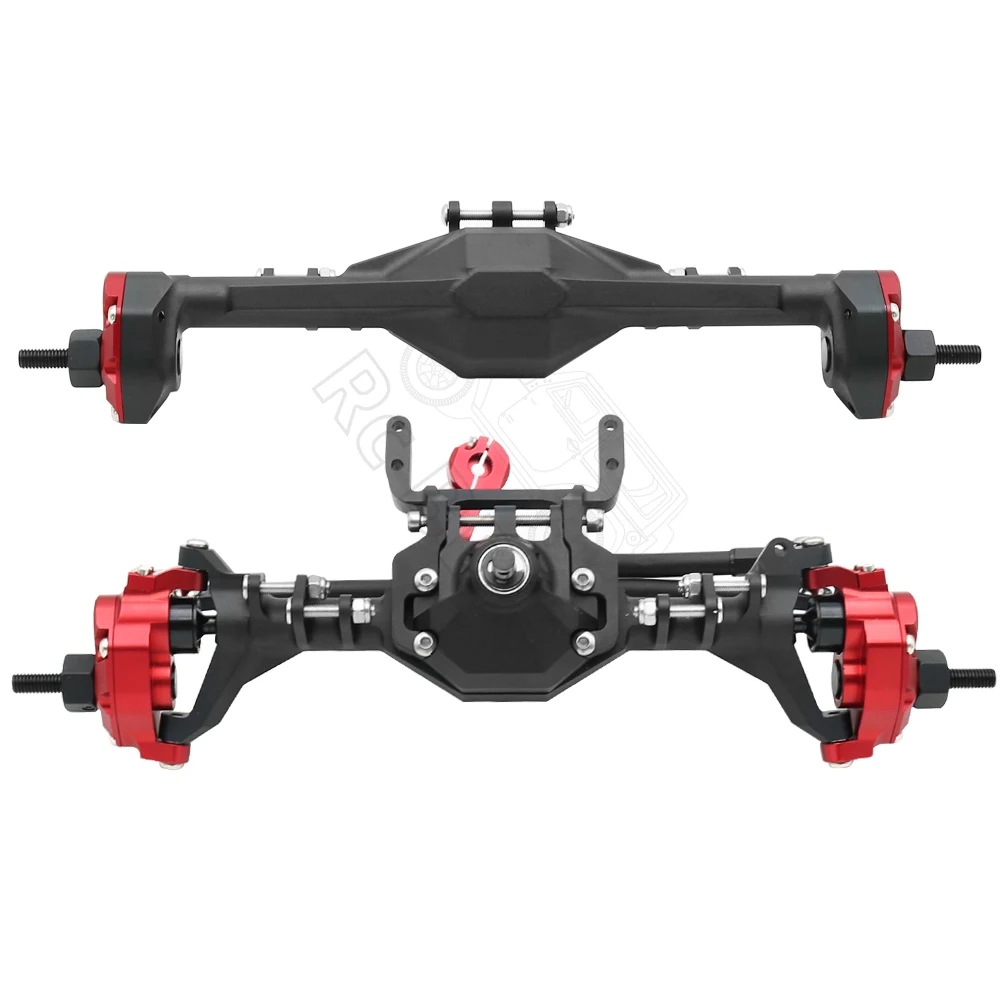

• Come with all parts needed to assemble a full axle.
• Direct replacement to any Axial AR44 axle
• Fits 1/10 RC Crawler Axial SCX10 I, SCX10 II, RGT 86100, Redcat GEN8 etc.
Material
• Housing: #6061 Aluminum
• Inner Spool: Stainless Steel, Black Anodized
• Bevel Gear Set: #40 Chrome Steel
• Portal Gear Set: Powder Metallurgy
• Bearings Set: Bearing Steel
Size
• Total Width: 220mm/8.66in
• Pin to Pin Width: 188mm/7.40in
• 5mm Axle Output Shaft
• 6mm Stub Shafts, 5mm thread
• 12mm Standard Hex
• Hex Thickness: 8mm
• Links Mount Width: 7.2mm

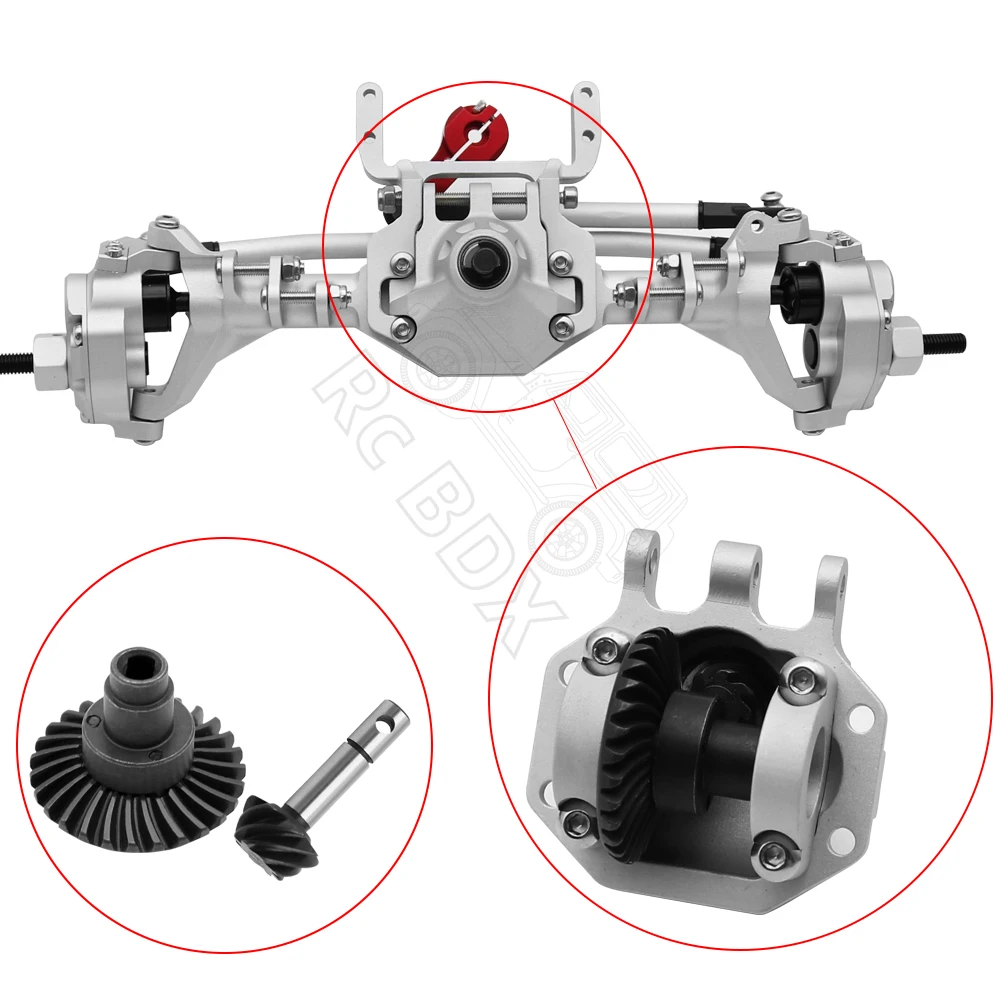

• Bevel Gear Set: 8/30T
• Portal Gear Set: 18T/30T
• Total Gear Ratio=6.25:1
Weight

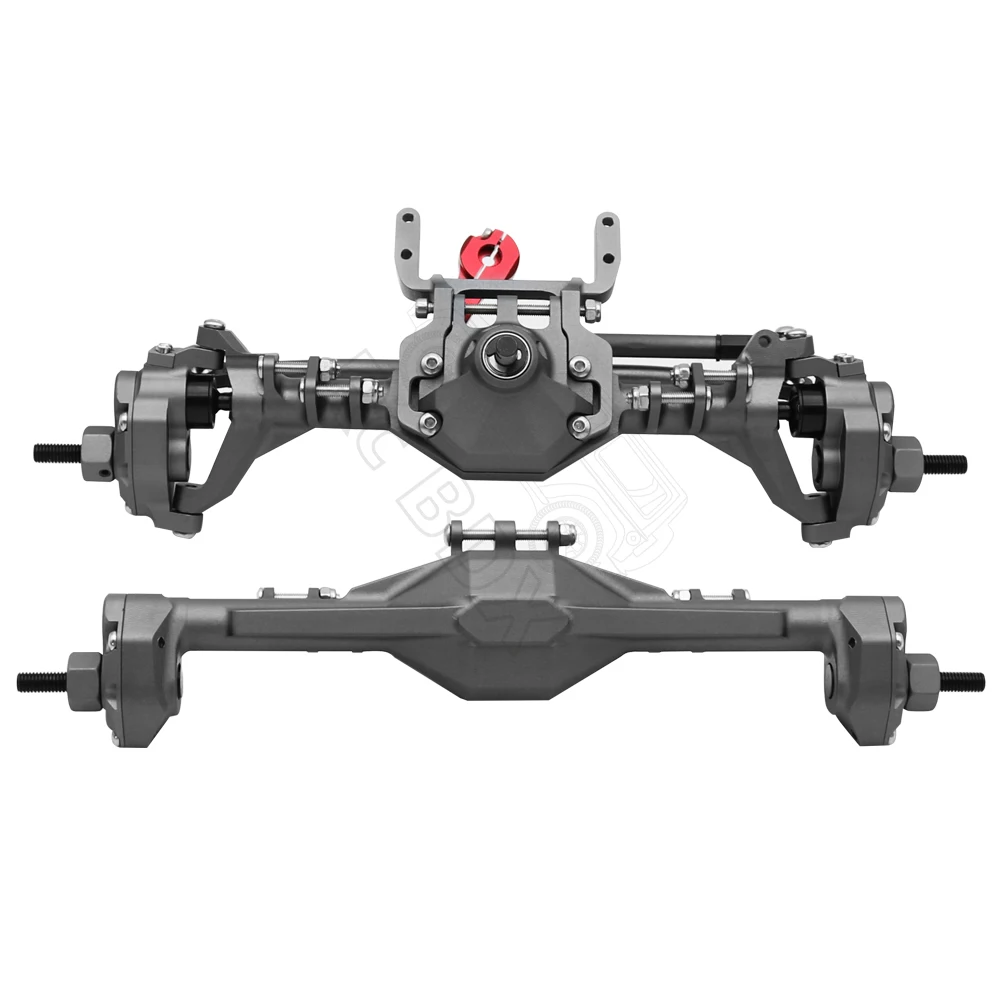

Front Axle: 295g / 10.4oz
Rear Axle: 229g / 8.08oz

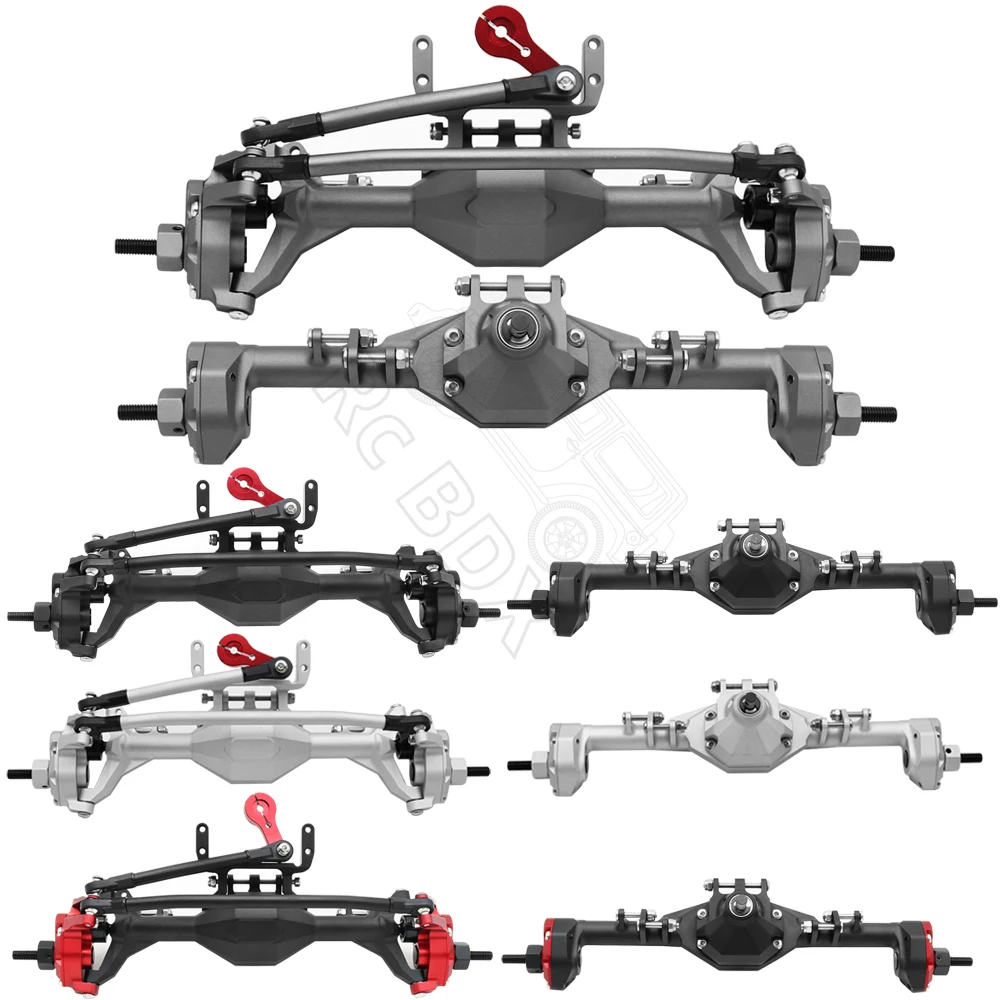

Color: Silver, Red, Gray, Black
